Euclid's Postulates
Euclid's postulates are the cornerstone of Euclidean geometry. They consist of fundamental principles—axioms and postulates—from which all other geometric theorems and properties can be logically derived.
Euclid, a Greek mathematician active in Alexandria, Egypt, around 300 BCE, is renowned for his work "Elements," a monumental treatise spanning 13 books that delve into various mathematical topics.
This work is one of the most influential in the history of mathematics, serving as the definitive guide to geometry for over two millennia.
Contents of Euclid's Elements:
- Books I-VI: Focus primarily on plane geometry and fundamental theorems such as the Pythagorean theorem.
- Books VII-IX: Explore number theory, including discussions on prime numbers and the famous algorithm for finding the greatest common divisor.
- Book X: Examines the theory of irrational proportions.
- Books XI-XIII: Investigate solid geometry, including the classification of regular polyhedra, known as Platonic solids.
Euclid’s approach was axiomatic and deductive, starting with a set of fundamental axioms and postulates to logically derive geometric theorems and constructions.
- Axioms: Self-evident truths that require no proof and serve as the foundation of a logical framework.
- Postulates: Specific propositions used as starting points to deduce and prove theorems within a particular system, such as geometry.
Euclid’s rigorous and systematic method made "Elements" a foundational text not only for mathematics but also for the evolution of logical and scientific thinking.
The Five Postulates of Euclid
In "Elements," Euclid introduced five key postulates:

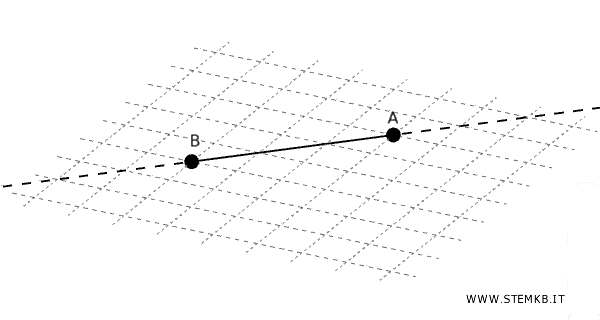

- The Straight Line Postulate
A straight line can be drawn to join any two distinct points.
Example: Given two points A and B on a piece of paper, there is exactly one straight line that connects them.

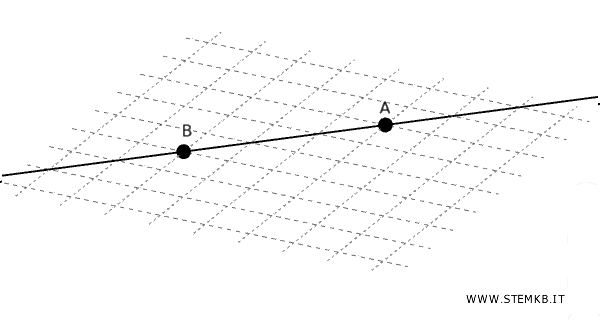

- The Extension Postulate
A finite straight line can be extended indefinitely in either direction.
Example: If you draw a line segment between points A and B, you can extend it infinitely in both directions.

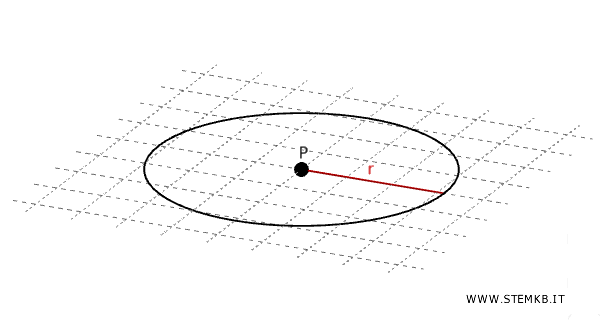

- The Circle Postulate
Given a point P and a distance r, it is always possible to draw a circle with P as its center and r as its radius.
Example: If you have a point A and a radius of 5 cm, you can draw a circle centered at A with a radius of 5 cm.

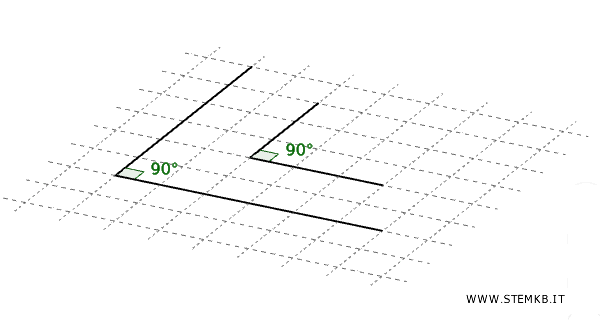

- The Right Angle Postulate
All right angles are congruent to one another.
Example: If you draw two right angles on a sheet of paper, regardless of their orientation or location, both will always measure exactly 90 degrees.

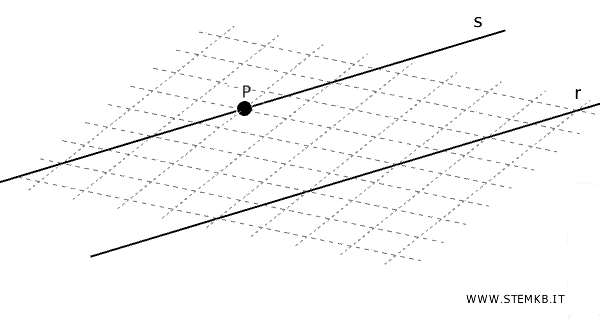

- The Parallel Postulate
Given a straight line and a point not on it, there is exactly one straight line parallel to the first that passes through the given point.
Example: If you have a line r and a point P that is not on it, there is only one line s passing through P that never intersects r; in other words, s is parallel to r.
These postulates are foundational because they allowed Euclid to construct a geometric framework that has stood as the cornerstone of mathematics for centuries.
Using only these five postulates and deductive reasoning, Euclid proved countless theorems and developed a comprehensive and rigorous structure known as Euclidean geometry (or plane geometry).
Euclid's postulates not only define the fundamental principles of Euclidean geometry but also provide a systematic method for understanding and exploring spatial properties. They illustrate how a solid and carefully defined foundation can give rise to a profound and expansive mathematical theory.
