Polygonal Chains
What is a Polygonal Chain?
A polygonal chain is a geometric figure consisting of an ordered sequence of line segments, known as edges, connected under the following conditions:
- Each segment is consecutive to the next but not adjacent.
- Each endpoint, referred to as a "vertex," is shared by no more than two segments.
These properties ensure that a polygonal chain forms a clearly defined structure, with edges meeting only at vertices, resulting in orderly shapes that may be either open or closed and not necessarily simple.
Additionally, the rule that each vertex is shared by at most two segments guarantees a structure that is either linear or cyclic, without any branching.
The concept of a polygonal chain is straightforward yet fundamental for understanding many other geometric constructs.
For example, polygonal chains are the building blocks of more complex structures, such as polygons, curves, and three-dimensional frameworks. Studying them fosters logical thinking and helps us connect simple shapes to more intricate designs. Geometry, at its core, is a way to explore the order and beauty of the world.
Types of Polygonal Chains
There are three main types of polygonal chains:

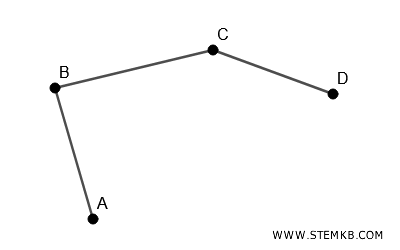

- Open Polygonal Chain
A polygonal chain is considered open if its first and last vertices are distinct. For instance, think of a broken line made up of consecutive segments: it has separate starting and ending points. Open polygonal chains are commonly used to represent paths or trajectories.

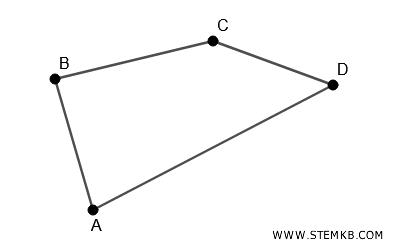

- Closed Polygonal Chain
A polygonal chain is classified as closed when its first and last vertices coincide, forming a continuous loop or outline. Closed polygonal chains are foundational in defining polygons: shapes like squares, pentagons, or any other straight-edged figures are examples of closed polygonal chains.

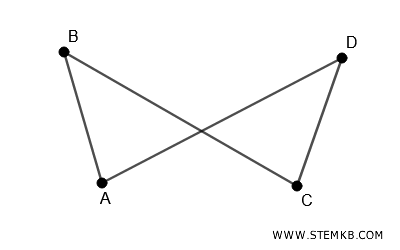

- Intersecting Polygonal Chain
A polygonal chain is described as intersecting if two non-consecutive edges cross at a point that is not a vertex. For example, consider a figure shaped like an "8" or a knot—these are typical examples of intersecting polygonal chains. Such intersections can result in complex shapes, sometimes complicating calculations of area or perimeter.
In summary, whether open, closed, or intersecting, each type of polygonal chain provides valuable insights into the geometric world and its practical applications.
