Straight Line

In geometry, a straight line is an infinite collection of points arranged in such a way that, for any two points on the line, the segment connecting them lies entirely within the line.

It is one of the most fundamental geometric figures and a cornerstone of Euclidean geometry.

A straight line has length but no width or thickness.

It extends infinitely in both directions, with no endpoints.

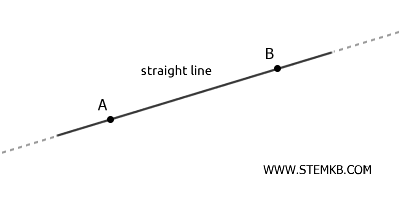

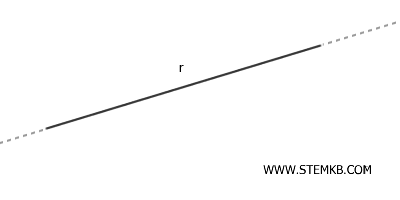

Typically, a straight line is labeled using the uppercase letters of any two points on it (e.g., A and B) or a lowercase letter (e.g., r).

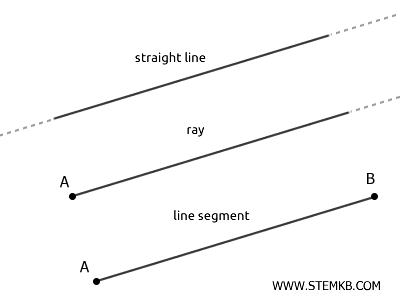

It’s important not to confuse a straight line with a segment or a ray, as these are distinct concepts.

While a straight line extends infinitely in both directions, a segment has a finite length, and a ray has a fixed starting point but stretches infinitely in one direction.

The concept of a straight line, like other fundamental geometric ideas, was first studied and formalized by the ancient Greeks, particularly by Euclid in his treatise "The Elements." Over time, our understanding and application of straight lines have expanded significantly, making them an essential part of mathematics and science.

Key Properties of a Straight Line

A straight line in a plane has the following properties:

• Through any two distinct points in the plane, exactly one straight line can be drawn.

• A straight line contains an infinite number of points.
• If two points lie on a straight line, then all the points between them also lie on the line.
• All points on a straight line lie within the same plane.

The Equation of a Straight Line

In two-dimensional space, such as the Cartesian plane, the general equation of a straight line is:

$$ Ax + By + C = 0 $$

Here, \( A \), \( B \), and \( C \) are constant coefficients, and at least one of \( A \) or \( B \) is non-zero.

Additionally, if the slope \( m \) and the y-intercept \( q \) are known, the line can be expressed as:

$$ y = mx + q $$

Intersecting, Parallel, and Coincident Lines

Two lines in a plane can have one of the following relationships:

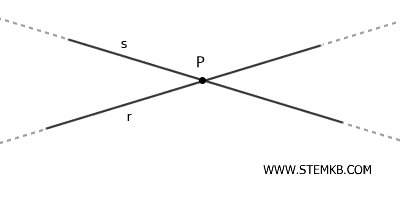

• Intersecting Lines
  These lines cross each other at a single point \( P \).

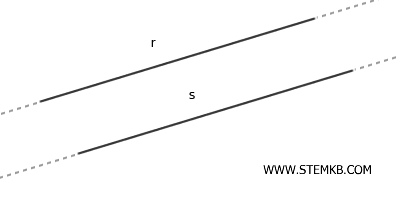

• Parallel Lines
  These lines never meet and have no points in common.

• Coincident Lines
  These lines overlap completely, sharing all points, and are effectively the same line.

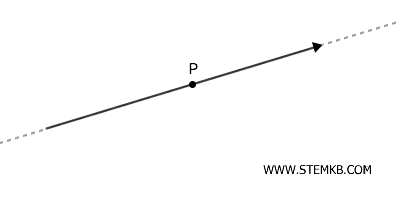

The Oriented Line

An oriented line is a line with a defined direction, enabling us to establish an order among its points based on the chosen orientation (e.g., left to right or right to left).

This means that, given a point \( P \) on the line, we can assign a direction of traversal, either to the right or to the left, which determines how we observe the sequence of points.

The key feature of an oriented line is its ability to define a relative order among points.

When a line is oriented, the points \( A \) and \( B \) on the line can be ordered according to the specified direction of traversal.

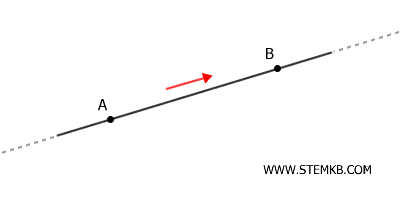

• If \( A \) comes before \( B \) in the direction of the oriented line, we say that \( A \) precedes \( B \).

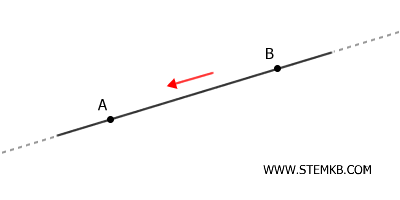

• If \( B \) comes before \( A \) in the direction of the oriented line, then \( B \) precedes \( A \).


This concept has practical applications in analytic geometry and physics, such as defining vectors or modeling scenarios where direction plays a critical role (e.g., motion along an axis).

Pencil of Lines

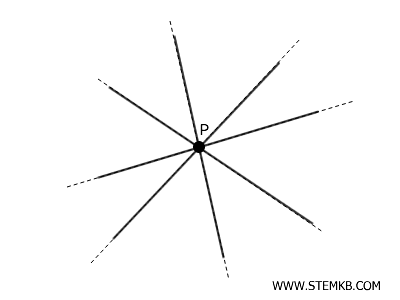

A proper pencil of lines refers to the set of all lines that pass through a common point \( P \), called the center of the pencil.

For instance, if we take a point \( P \) in a plane, each line in the pencil is characterized by a unique inclination or slope, but all of them intersect at \( P \).

The lines in the pencil radiate from \( P \), covering every possible direction from that point.

This concept is essential for studying geometric relationships between lines and angles.

Axioms of Lines in Euclidean Geometry

The axioms of line membership in Euclidean geometry define the fundamental relationships between points and lines. Let’s explore them through practical examples for better understanding:

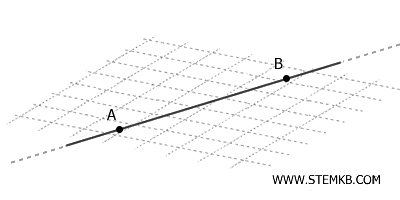

• Every line is a subset of a plane
  A line is always a subset of a plane because all the points on the line also belong to the plane where the line resides. This means that within Euclidean geometry, a line is intrinsically tied to the plane and cannot exist independently of it.

• Every line contains at least two distinct points
  This axiom states that a line is defined by at least two points. For instance, if you draw a line \( r \), you can always identify two distinct points, \( A \) and \( B \), that lie on \( r \).

• Given two distinct points, there is exactly one line that passes through both
  This axiom ensures that two distinct points uniquely determine a line. For example, if you have two points \( A \) and \( B \), there is exactly one line \( r \) that passes through both.


  From this, we can deduce that two distinct lines in a plane can intersect at most at one point. If they were to share two or more points, those points would define a single line, meaning the two lines would be coincident.

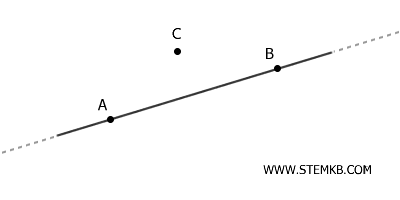

• For any line in a plane, there is at least one point in the plane that does not lie on the line
  This axiom highlights that a line does not contain all the points of a plane. A plane consists of an infinite number of points, not all of which are located on the same line.

• Order Axioms of a Line
  The order axioms of a line define the fundamental principles that govern the arrangement of points along a line. These axioms can be summarized as follows:

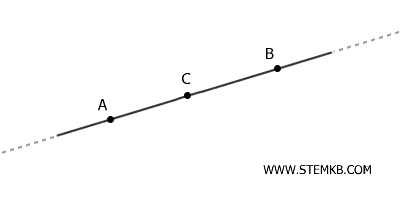

  • Intermediate Point Axiom
    Given two distinct points \( A \) and \( B \) on a line, there always exists a point \( C \) between \( A \) and \( B \). This means that a line is dense, with infinitely many points lying between any two distinct points.

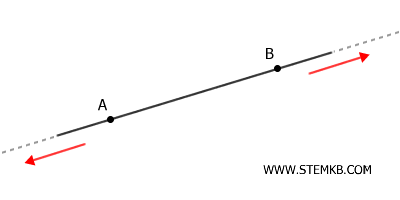

  • Extension Axiom
    For any point \( P \) on a line, there are always at least two points \( A \) and \( B \) such that \( A \) lies before \( P \), and \( P \) lies before \( B \). This establishes that a line extends infinitely in both directions without boundaries.


  From these axioms, we infer the infinite nature and continuity of the set of points on a line.

These axioms form the cornerstone of plane geometry, providing the foundation for defining more advanced concepts such as angles, triangles, and other geometric shapes.
