Center of Mass in Physics

The center of mass is the point where you can imagine all the mass of an object - or even a whole system - is concentrated.

It’s a powerful idea in physics. Instead of tracking every particle in a complex object, you can just follow this one point. The object behaves as if all forces were acting right there.

It’s not always a physical location filled with matter. The center of mass is a mathematical point that depends on how the mass is spread out. It might lie inside the object - or even in empty space.

If an object has a uniform mass distribution, the center of mass usually matches the geometric center, also known as the centroid.

In simplified models, it’s the spot where gravity is considered to act, and it moves according to Newton’s laws as if the entire object were a single point.

Why does it matter?
Understanding the center of mass lets you simplify how you analyze motion, balance, and stability. Whether you're studying how an object moves, how it reacts to forces, or whether it will fall over or stay upright - the center of mass gives you the answer.

Real-Life Examples

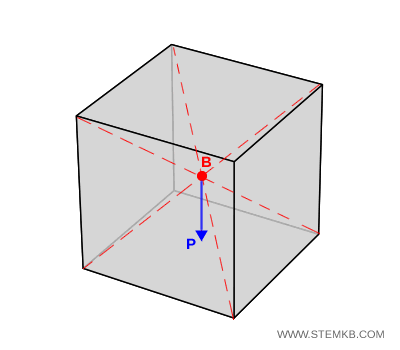

1. A solid, uniform cube

Imagine a wooden cube with equal density throughout. Its center of mass is right in the middle - simple and intuitive.

Since the mass is evenly distributed, the geometric center is also the center of mass. If you place it on a table, gravity pulls straight down through that point.

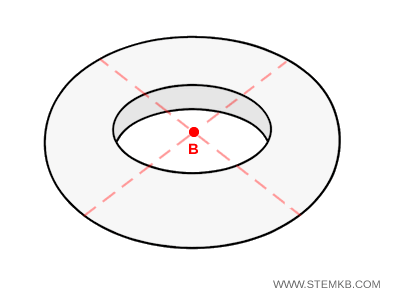

2. A ring or doughnut shape

Now picture a hollow ring - or a doughnut (technically called a torus). The mass is concentrated along the edge, leaving the middle empty.

Surprisingly, the center of mass is right in the middle - in thin air! There’s no material there, but that’s where the mass balances out.

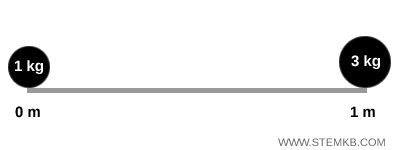

3. Two weights on a stick

Let’s say you have two balls - one 1 kg and the other 3 kg - connected by a lightweight 1 m rod.

To find the center of mass, use the weighted average:

$$ x_{cm} = \frac{m_1 x_1 + m_2 x_2}{m_1 + m_2} $$

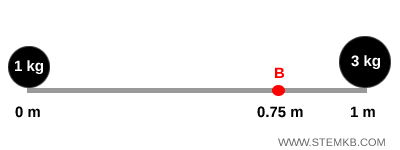

If the 1 kg mass is at position 0 and the 3 kg mass is at position 1:

$$ x_{cm} = \frac{1 \cdot 0 + 3 \cdot 1}{1 + 3} = 0.75\,\text{m} $$

So, the center of mass is 75 cm from the lighter ball - much closer to the heavier one, just as you'd expect.

More Generally

For any system of particles, you can calculate the center of mass with this formula:

$$ \vec{R}_{cm} = \frac{\sum m_i \vec{r}_i}{\sum m_i} $$

Here, $m_i$ is the mass of each particle and $\vec{r}_i$ its position.

In a Nutshell

The center of mass lets you treat complex objects as if they were just a single point. That’s incredibly helpful in physics.

From a soccer ball rolling on the field to a satellite orbiting Earth - if you know where the center of mass is, you can predict how the whole system will move.
