Normal Force

Have you ever set a cup down on a table and wondered why it doesn’t fall straight through the wood? The answer isn’t as obvious as it seems, and it all comes down to a silent yet fundamental force: the normal force.

What is the normal force?

The normal force is the perpendicular reaction force exerted by a surface to counteract the pressure of an object resting on it.

It’s one of many contact forces that constantly act around us, often unnoticed. Its job is to stop objects from passing through the surfaces they rest on.

Every time an object touches a surface, the surface pushes back with a force perpendicular to the contact plane - as if saying, “That’s far enough!”

Why is it called the “normal” force? We call it “normal” because in geometry, “normal” means perpendicular. But this force is anything but ordinary. It’s the solid world’s elastic response to being pressed. Without it, walking, sitting, or placing an object down would be impossible - everything would just sink through. Though invisible, the normal force is everywhere, quietly supporting the physical world.

A practical example

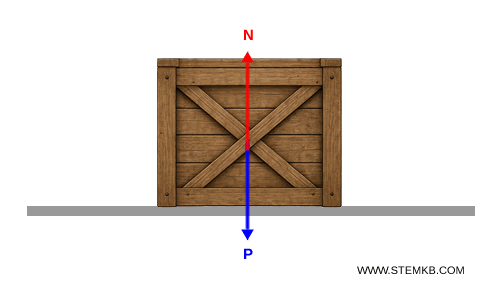

Imagine a box resting motionless on the floor.

Its weight $ \vec{P} $ pulls it downward, while the floor pushes back with an equal and opposite normal force $ \vec{N} $ directed upward.

This balance explains why the box stays put: the two forces cancel each other out.

$$ \vec{P} + \vec{N} = 0 $$

In other words, the normal force is a vector equal in magnitude but opposite in direction to the object’s weight.

$$ \vec{P} = - \vec{N} $$

In this case, the normal force and the gravitational force are perfectly balanced.

Important: it's not the same as weight. Weight always pulls downward, toward Earth’s center. The normal force pushes upward from the surface, opposing the weight. Sometimes these two forces cancel each other out - but not always.

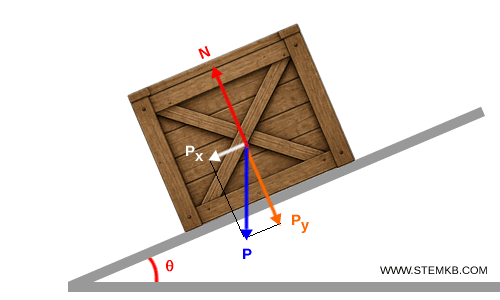

Now place that same box on an inclined plane, and things get more interesting.

The weight still acts vertically downward, but the normal force is now slanted - so it can no longer fully oppose the weight. Its magnitude is smaller.

Here, the normal force balances only the component of weight $ \vec{P_y} $ that is perpendicular to the slope.

$$ F_N = P_y $$

You can calculate this using basic trigonometry:

$$ F_N = mg \cdot \cos(\theta) $$

Where $\theta$ is the angle of inclination. The steeper the slope, the less the surface can support the object vertically.

As a result, the normal force is less than the total weight, since the remaining component $ \vec{P_x} $, parallel to the slope, tends to pull the object downhill.

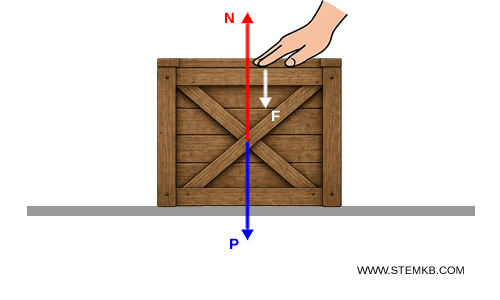

What if you press down on the object?

If you apply additional downward force - say, by pressing with your hand - the surface must push back even harder to resist penetration.

In that case, the normal force $ \vec{N} $ becomes greater than the object’s weight $ \vec{P} $, because it now has to counter both the gravitational force and your applied force $ \vec{F} $.

$$ F_N = mg + F_{\text{pressione}} $$

This is exactly what happens when you press down on an overstuffed suitcase to close it: the surface below feels the full weight of the bag plus the extra pressure from your hands.

Ultimately, the magnitude of the normal force depends on the context - whether the surface is flat or sloped, and whether any additional forces are acting on the object.

But its purpose is always the same: to prevent matter from overlapping and to maintain the structural balance of our physical world.

It might sound trivial... but without the normal force, even the simplest actions - like setting down a pen - would defy possibility.
