Friction Forces

Friction is one of those forces that's always with us, even if we rarely notice it. From driving a car to writing with a pen, friction enables countless everyday activities. But what exactly is friction? Why does it exist? And how can we better understand and use it to our advantage?

The Origin of Friction

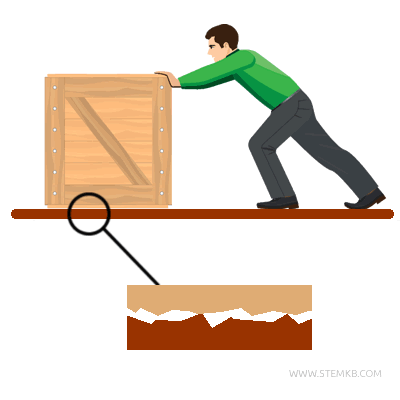

Even surfaces that look perfectly smooth, like a polished floor or finely ground glass, reveal a network of microscopic bumps and grooves under a microscope.

When two surfaces come into contact, these irregularities interlock, creating resistance to movement.

This resistance, known as friction, can be thought of as the "price" we pay to start or maintain motion.

Types of Friction

There are three main types of friction:

• Sliding friction, which occurs when two surfaces slide against each other.
• Rolling friction, which happens when an object rolls over a surface. It’s much weaker than sliding friction, which is why wheels and spheres are so effective for transportation.

  For example, in a car, rolling friction between the tires and the road helps keep the vehicle on track when taking a turn.

• Viscous friction, which acts on objects moving through a fluid, such as air or water.

  For instance, a swimmer cutting through the water or a cyclist pedaling against the wind encounters viscous friction. This resistance depends on the object’s speed and surface area. Swimmers reduce viscous friction with ultra-light, streamlined suits, while cyclists rely on aerodynamic designs, such as specialized helmets and carbon-fiber wheels.

Sliding friction can be further divided into two categories:

• Static friction, which resists the start of motion.

  For example, when pushing a heavy piece of furniture, the initial force needed to get it moving is greater than the force required to keep it moving.

• Kinetic friction, which acts when an object is already in motion. Once the furniture starts sliding, it’s easier to keep it moving than to get it started.

Static Friction

Static friction resists the initiation of motion, meaning it only acts on stationary objects.

Until a certain threshold is exceeded, this force counteracts any attempt to move an object at rest.

Its key characteristics are described by a few empirical laws that help us better understand how it works.

1. Parallel and opposite to potential motion
   The static friction force is always parallel to the contact surface and acts in the opposite direction to the motion the object would make in the absence of friction.

   For instance, if you try to push a book across a table, the static friction force pushes back against your effort, preventing the book from moving at first.

2. Independent of the contact area
   Surprisingly, static friction doesn’t depend on the contact area between the object and the surface. This means that, under the same conditions, a brick lying on its wide side or narrow side will experience the same static friction force.
3. Variable up to a maximum limit
   Static friction can range from zero (when no external force is applied) to a maximum value, defined by the equation: $$ F_{s, \text{max}} = \mu_s \cdot F_N $$ Here, \( \mu_s \) is the coefficient of static friction, determined by the materials in contact, and \( F_N \) is the normal force, or the perpendicular force exerted by the surface. Once the applied force exceeds \( F_{s, \text{max}} \), the object begins to move, and static friction gives way to kinetic friction.

A Practical Example

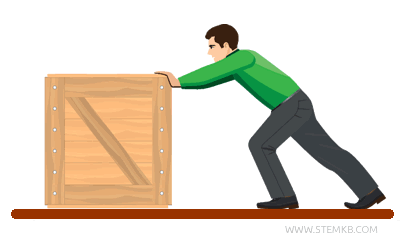

Imagine a heavy box resting on the floor.

If you apply a small force to push it, the box doesn’t move: static friction adjusts to match your push, canceling it out.

As you increase the force, you’ll reach a point where your push exceeds \( F_{s, \text{max}} \), and the box starts to move.

This moment marks the limit of static friction.

Static friction is an invisible force that plays a critical role in everyday situations, from keeping objects stationary to preventing them from sliding down inclined surfaces.

Kinetic Friction

Kinetic friction comes into play once an object is already moving relative to a surface.

This type of friction is more predictable than static friction and follows a few empirical laws that help us calculate and understand its effects.

1. Parallel and opposite to motion
   The kinetic friction force acts parallel to the contact surface and opposes the direction of motion. This means that as an object slides, kinetic friction constantly works to slow it down.

   Example: A box sliding across a smooth floor slows down because kinetic friction resists its motion.

2. Independent of contact area and speed
   Kinetic friction is unaffected by the contact area or the object’s speed. Whether a box rests on its wide or narrow side, or moves slowly or quickly, the kinetic friction force remains constant under the same conditions.
3. Proportional to the normal force
   The magnitude of kinetic friction is proportional to the normal force (\( F_N \)), the perpendicular force exerted by the surface. This relationship is expressed as: $$ F_d = \mu_d \cdot F_N $$ Here, \( \mu_d \) is the coefficient of kinetic friction, specific to the materials in contact, and \( F_N \) is the normal force, often equal to the object’s weight if the surface is horizontal.

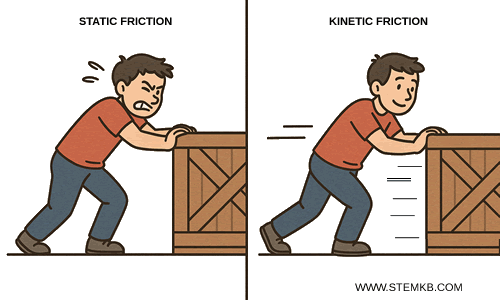

Differences Between Static and Kinetic Friction

The coefficient of kinetic friction (\( \mu_d \)) is typically lower than the coefficient of static friction (\( \mu_s \)).

In practical terms, this means that once an object is in motion, it requires less force to keep it moving than it did to overcome the initial resistance and set it in motion.

Another key distinction is that static friction can vary - adjusting to match the applied force up to a maximum limit - whereas kinetic friction maintains a steady value once motion has begun.

A practical example. Picture yourself trying to push a box across the floor. At first, you have to exert enough force to overcome static friction and get the box moving. But once it starts sliding, it becomes noticeably easier to keep it going. That’s because you’re now countering kinetic friction, which is not only weaker but also more predictable. For this reason, kinetic friction is generally easier to manage than static friction.

Why is static friction stronger than kinetic friction?

When two surfaces are at rest relative to each other, microscopic surface irregularities - tiny peaks and valleys - have time to interlock more effectively.

This interlocking creates stronger adhesive forces that must be broken to initiate movement, requiring a greater applied force.

Once the object is in motion, these microscopic contacts are continuously forming and breaking, preventing them from locking in the same way. As a result, the frictional resistance drops and shifts into the kinetic regime, which is inherently weaker.

In essence, static friction involves adhesive interactions - temporary molecular bonds - while kinetic friction is dominated by mechanical resistance caused by sliding.

Friction Coefficients

The coefficients of static friction (\( \mu_s \)) and kinetic friction (\( \mu_d \)) are critical for calculating friction. For example:

Material	Kinetic Friction (μd)	Static Friction (μs)
Rubber on concrete (dry)	0.80	1.00
Rubber on concrete (wet)	0.25	0.30
Skis on snow	0.05	0.10
Steel on steel	0.57	0.74
Glass on glass	0.40	0.94
Wood on leather	0.40	0.50

These values show that static friction is generally higher than kinetic friction.

This explains why starting an object in motion is harder than keeping it moving.

It also highlights why reducing speed is crucial on wet roads, where kinetic friction drops dramatically.

In conclusion, friction isn’t just a force that resists motion - it’s an essential mechanism that makes everyday life possible. Without friction, walking, braking, or even writing would be impossible.
