The uint16() Function in Scilab

Scilab offers the uint16() function, designed to convert numbers or matrices into 16-bit unsigned integers seamlessly.

uint16(x)

Using the structure uint16(x), where x can either be an individual number or a matrix of numbers, the function effectively transforms any decimal number into its corresponding 16-bit unsigned integer representation.

The nomenclature "uint16" is a concise representation for "16-bit unsigned integer". This specific datatype is tailored to represent values from 0 all the way up to 65,535.

Let's delve into a practical example.

Suppose we assign the variable "num" with the decimal value 12345.6789

num=12345.6789

To convert this number into its 16-bit integer form, we'd employ the uint16() function.

uint16(num)

The function, in its efficacy, will truncate the number, providing only the integer component, which in this case is 12345.

ans =
12345

A pertinent question arises: what if the number exceeds 65,535 or dips below zero?

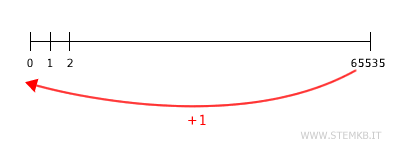

Should the number surpass the highest representable 16-bit value (65,535), the uint16() function cleverly wraps around, starting afresh from the minimum value (0).

For context, using 65535+1 as an input will result in:

uint16(65535+1)

ans =
0

Similarly, for 65535+2

uint16(65535+2)

ans =
1

Conversely, when the number falls beneath the minimum 16-bit value (zero), the function wraps from the maximum value in a reverse order.

To illustrate, converting a value of 0-1 will produce:

uint16(0-1)

ans =
65535

It's worth noting that the uint16() function, while robust, doesn't flag an overflow error, as it's designed to operate on a modular arithmetic basis.

So, why the emphasis on 16-bit integers? The answer lies in efficiency. Opting for 16-bit integers over floating-point data or larger datatypes markedly reduces memory consumption, especially when navigating vast datasets. Additionally, they expedite computations in comparison to their 32/64-bit integer and floating-point counterparts.

That said, a crucial aspect to bear in mind is the inherent truncation associated with the uint16() function. While it serves its primary purpose, it does so at the cost of potential data truncation, necessitating caution to maintain computational precision.
