How to Save a Graph as a File in Octave
In this tutorial, I will explain how to save a graph created in Octave as a digital file, in a few easy steps.
Let's start with a practical example.
1] Open a graphic area
Type the command figure(1) to open a new graphic area.
>> figure(1)
2] Clear the graphic area
Type the command clf() to clear the graphic area.
>> clf()

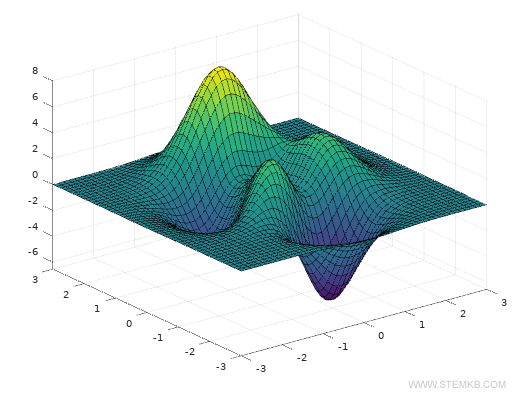

3] Create a 3D graph
Use the command peaks() to generate the graph of a function of two variables in three-dimensional space.
>> peaks()
This command generates the graph of a function of two variables in three-dimensional space.
4] Save the graph as an SVG image file
To save the graph as an SVG image file, use the function print -dsvg filename.
For example, type print -dsvg prova1.svg to create the file prova1.svg in Octave's working directory.
>> print -dsvg prova1.svg
In this case, Octave's 'print' function saves the 'prova1.svg' file to its working directory.
Note. If you prefer to save the graph as a PNG image file, type the command print -dpng prova1.png

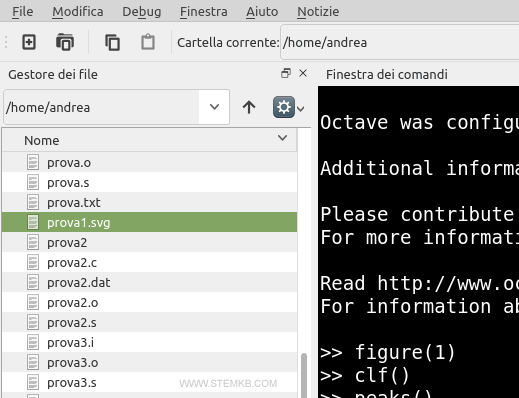

5] View the saved file
You can see the saved file in the file manager window
6] Open the file in graphics software
Once the file is saved, you can open it with any graphics software, such as Photoshop or Gimp.
Alternatively, you can also save the graph using the saveas() function.
For example, type saveas(1, "prova2.png") to save the graph as a PNG image file.
>> saveas(1, "prova2.png");
The final result is the same.
By following these simple steps, you can easily save a graph as a file in Octave, and use it for further analysis or visualization.
