Measurement Instruments

A measurement tool is a device used to determine the value of a physical quantity, such as length, time, or temperature. It may be analog, with a graduated scale, or digital, displaying values numerically.

Measurement instruments are all around us in everyday life, though we often don’t realize it.

From a simple ruler to a complex car speedometer, each tool provides valuable information about the world we interact with. Even a watch, for instance, measures time.

Gaining a deeper understanding of measurement tools helps us use them more effectively and also underscores the importance of precision and accuracy in our measurements.

Types of Measurement Tools

Measurement tools generally fall into two main categories: analog and digital.

• Analog Tools
  Analog tools have a graduated scale where a pointer indicates the value. A common example is a mercury thermometer, where the mercury level shows the temperature, or an analog clock with hands.
• Digital Tools
  Digital tools, on the other hand, show the measurement on a numerical display, like a digital odometer that shows distance traveled in digits or a digital clock.

This distinction is important as it often influences the tool’s precision and readability.

For example, an analog speedometer allows for an estimated reading between markings, while a digital speedometer only shows the exact displayed value. Each type has advantages and limitations depending on the context and required precision level.

Range of a Tool

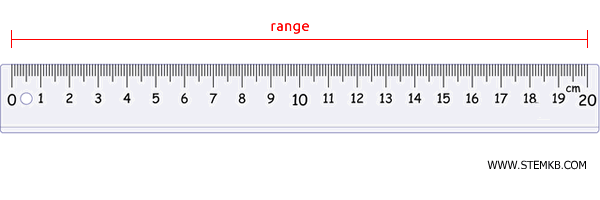

The range of a tool is the maximum value it can measure.

For instance, a standard ruler can measure up to 20 cm, a tailor’s tape up to 150 cm, and a laser device can exceed 5 meters.

If you need to measure something larger than the tool’s range, the result may be inaccurate or even impossible to obtain.

For example, if you’re measuring a room with a school ruler, you’ll need to break down the measurement into segments, placing the ruler repeatedly along the length or width. This process increases the risk of minor errors at each repositioning, which, when combined, can reduce the accuracy of the final measurement. Tools with a larger range, such as a measuring tape, are ideal for large spaces since they reduce the number of segments and, therefore, the margin of error. In this case, a measuring tape with a range of up to 10 meters would be preferable.

Thus, the range is a key factor when choosing the right tool for a particular measurement.

Sensitivity of a Tool

Sensitivity represents the smallest change that a tool can detect.

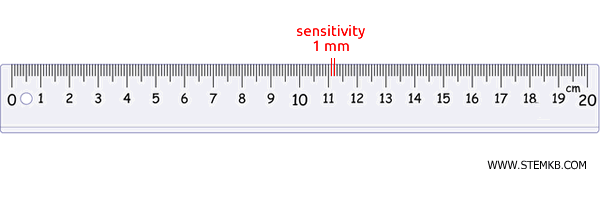

For example, the sensitivity of a ruler is defined by the distance between the scale’s markings, usually 1 millimeter.

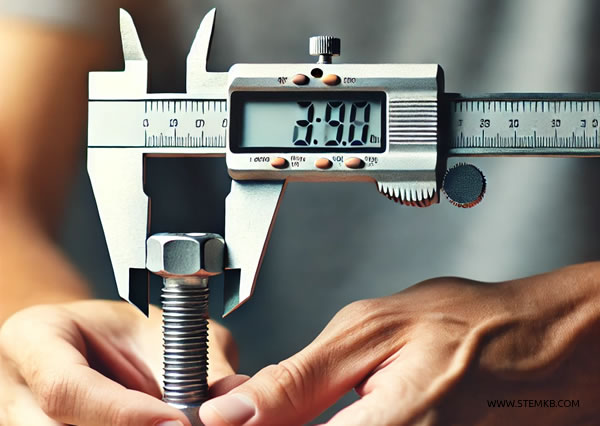

A caliper, on the other hand, is much more sensitive, capable of measuring down to a tenth of a millimeter.

In contrast, a car's odometer has variable sensitivity: typically 1 km for analog models, while digital ones can show changes as small as 100 meters.

This difference in sensitivity is crucial in contexts that demand high accuracy.

High sensitivity is essential in fields like engineering or materials manufacturing, where even slight inaccuracies can impact the quality or functionality of the final product.

Beyond everyday tools, there are highly advanced and sensitive measurement devices, like the detectors at CERN in Geneva, used to study subatomic particles.

These devices must have exceptional sensitivity and precision to detect particles invisible to the naked eye and their interactions.
